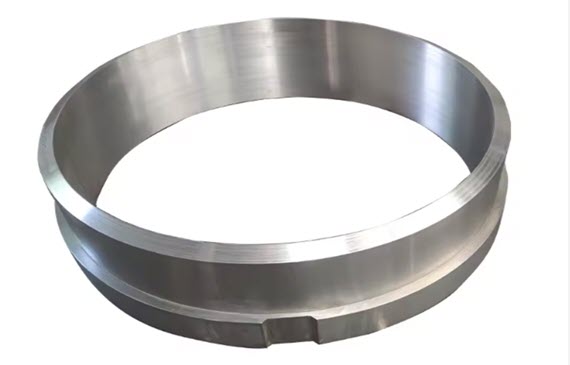

ForceBeyond is a premier manufacturer of seamless rolled ring forgings, delivering mission-critical circular components to the world’s most demanding industries. By utilizing advanced ring rolling mills, we produce high-strength, perfectly seamless metal rings that offer superior structural integrity compared to rings cut from steel plate or cast in molds.
Our seamless rolled ring forging process supports a wide spectrum of materials, from carbon and stainless steels to advanced aerospace superalloys like Inconel 718 and Titanium. With exceptional dimensional accuracy and scalable production capabilities, we deliver fully machined, lot-traceable rings for aerospace turbines, wind energy bearings, and high-pressure fluid control systems.
ForceBeyond’s ring rolling infrastructure is capable of producing rings across a massive range of dimensions, tailored to specific engineering requirements. The rolling process imparts a circumferential grain flow that yields exceptional radial and tangential strength.
| Material Category | Common Alloys Rolled | Typical Applications |
|---|---|---|
| Superalloys | Inconel 718, Inconel 625 | Jet engine compressor cases, gas turbine seals, and aerospace flanges. |
| Titanium | Ti-6Al-4V | Lightweight aerospace structural rings and deep-sea pressure housings. |
| Stainless Steel | 304, 316L, 17-4 PH | Corrosive-environment flanges, chemical reactor seals, and marine equipment. |
| Alloy & Carbon Steel | 4140, 4340, 1045 | Heavy-duty gear blanks, wind turbine slewing bearings, and industrial slewing rings. |
(Note: Our rolling mills can accommodate Outer Diameters (OD) ranging from a few inches up to massive structural rings exceeding 100 inches, depending on the alloy and cross-section).
Manufacturing high-stress circular components requires a process that maximizes fatigue life while minimizing material waste. Seamless rolled ring forging is the ultimate metallurgical solution.
A rolled ring leaves the mill in a rough, near-net shape. ForceBeyond operates on a Tier-1.5 model, integrating heavy-duty forging with precision secondary operations under one ISO 9001:2015 quality system.
Our global foundry network supplies high-strength, seamless rolled rings to:
The process begins by cutting a cylindrical billet of metal. The billet is heated and 'upset' (compressed flat) before a hole is punched through the center, creating a thick 'donut'. This donut is placed on a ring rolling mill, where internal and external rollers squeeze the walls, simultaneously reducing the wall thickness and expanding the ring's overall diameter until it reaches the targeted size.
Cutting a ring out of a steel plate leaves an exposed, unidirectional grain structure (imagine cutting a circle out of a piece of wood). Under high rotational stress or pressure, this ring is prone to cracking along those grain lines. Ring rolling forces the grain to flow in a continuous circle, making it vastly stronger and more fatigue-resistant.
Yes. While many rings are rolled with simple rectangular cross-sections, we can utilize profiled rollers to create complex inner or outer contours (such as tapered walls, steps, or grooves). This brings the ring even closer to its final net shape, further reducing CNC machining time.
